In a continuation of comparing the topography of the two QTH's, graphs below show the influence of the terrian on the take off angles.
As its just for comparison a single element is used set to height of 50 feet.
The Red line shows IO82RJ Shropshire [new], the Blue line shows IO82XL Midlands [old] and the Green line shows Flat ground.
0 deg Azimuth. North.
 |
| M0BEW - 0 deg. Az. 3.5MHz. IO82RJ / IO82XL / Flat |
 |
| M0BEW - 0 deg. Az. 7.0MHz. IO82RJ / IO82XL / Flat |
 |
| M0BEW - 0 deg. Az. 14MHz. IO82RJ / IO82XL / Flat |
 |
| M0BEW - 0 deg. Az. 21MHz. IO82RJ / IO82XL / Flat |
 |
| M0BEW - 0 deg. Az. 28MHz. IO82RJ / IO82XL / Flat |
 |
| M0BEW - 0 deg. Az. 50MHz. IO82RJ / IO82XL / Flat |
-
60 deg. Azimuth. North East.
 |
| M0BEW - 60 deg. Az. 3.5MHz. IO82RJ / IO82XL / Flat |
 |
| M0BEW - 60 deg. Az. 7.0MHz. IO82RJ / IO82XL / Flat |
 |
| M0BEW - 60 deg. Az. 14MHz. IO82RJ / IO82XL / Flat |
 |
| M0BEW - 60 deg. Az. 21MHz. IO82RJ / IO82XL / Flat |
 |
| M0BEW - 60 deg. Az. 28MHz. IO82RJ / IO82XL / Flat |
 |
| M0BEW - 60 deg. Az. 50MHz. IO82RJ / IO82XL / Flat |
-
120 deg. Azimuth. South East.
 |
| M0BEW - 120 deg. Az. 3.5MHz. IO82RJ / IO82XL / Flat |
 |
| M0BEW - 120 deg. Az. 7.0MHz. IO82RJ / IO82XL / Flat |
 |
| M0BEW - 120 deg. Az. 14MHz. IO82RJ / IO82XL / Flat |
 |
| M0BEW - 120 deg. Az. 21MHz. IO82RJ / IO82XL / Flat |
 |
| M0BEW - 120 deg. Az. 28MHz. IO82RJ / IO82XL / Flat |
 |
| M0BEW - 120 deg. Az. 50MHz. IO82RJ / IO82XL / Flat |
-
180 deg. Azimuth. South.
 |
| M0BEW -180 deg. Az. 3.5MHz. IO82RJ / IO82XL / Flat |
 |
| M0BEW - 180 deg. Az. 7.0MHz. IO82RJ / IO82XL / Flat |
 |
| M0BEW - 180 deg. Az. 14MHz. IO82RJ / IO82XL / Flat |
 |
| M0BEW - 180 deg. Az. 21MHz. IO82RJ / IO82XL / Flat |
 |

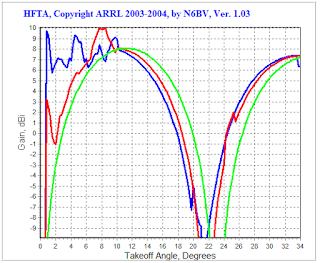

| M0BEW - 180 deg. Az. 28MHz. IO82RJ / IO82XL / Flat |
 |
| M0BEW - 180 deg. Az. 50MHz. IO82RJ / IO82XL / Flat |
-
240 deg. Azimuth. South West.
 |
| M0BEW - 240 deg. Az. 3.5MHz. IO82RJ / IO82XL / Flat |
 |
| M0BEW - 240 deg. Az. 7.0MHz. IO82RJ / IO82XL / Flat |
 |

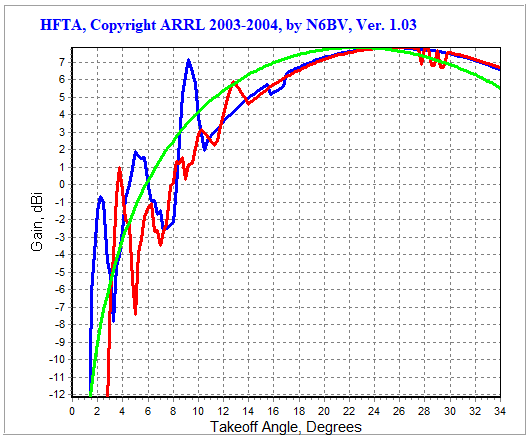

| M0BEW - 240 deg. Az. 14MHz. IO82RJ / IO82XL / Flat |
 |

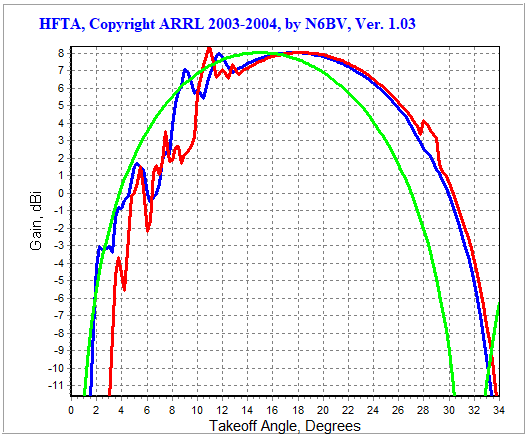

| M0BEW - 240 deg. Az. 21MHz. IO82RJ / IO82XL / Flat |
 |
| M0BEW - 240 deg. Az. 28MHz. IO82RJ / IO82XL / Flat |
 |
| M0BEW - 240 deg. Az. 50MHz. IO82RJ / IO82XL / Flat |
-
320 deg. Azimuth. North West.
 |
| M0BEW - 320 deg. Az. 3.5MHz. IO82RJ / IO82XL / Flat |
 |
| M0BEW - 320 deg. Az. 7.0MHz. IO82RJ / IO82XL / Flat |
 |
| M0BEW - 320 deg. Az. 14MHz. IO82RJ / IO82XL / Flat |
 |
| M0BEW - 320 deg. Az. 21MHz. IO82RJ / IO82XL / Flat |
 |
| M0BEW - 320 deg. Az. 21MHz. IO82RJ / IO82XL / Flat |
 |
| M0BEW - 320 deg. Az. 50MHz. IO82RJ / IO82XL / Flat |
Tim M0BEW.
