The other systems are planned to be located a lot closer. The 50/144/430+ is only a 20 metre run.

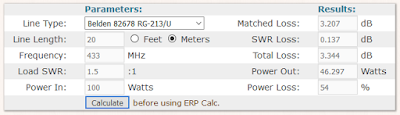

(1) Direct - 20 metre run.

50MHz.

144MHz.

430MHz.

1240MHz.

-

Next is, the VHF and UHF Vertical antenna position. Nice and simple. Diamond X300.

Main run direct to it to the corner of the shack.
(1) Direct - 12 metre run.

144MHz.

430MHz.


Part 3 and Conclusions to follow.

Tim M0BEW.
